Order number: AM-EIS-317-61-SW
plus Delivery costs (14 kg)
15" EisTouch HI 3G mit HI-Server 3.0, black
EisBaer – built-in-Touchscreens - The easy to use visualization in an ideal combination

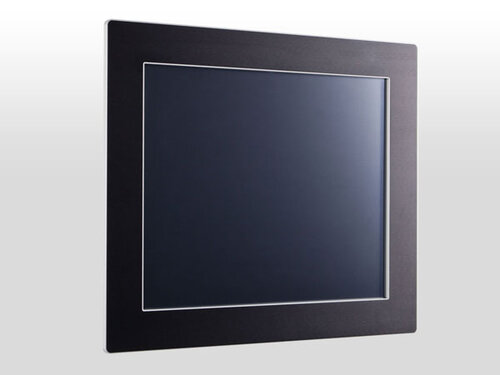

EisBaer - EisTouch HI 3G – 38,1 cm/15“, black
Built-in-Touchscreen with HI-Server (high-integrated PC) and EisBaer SCADA visualization. The EisBaer EisTouch 3G – series is characterized as a complete solution with a very good value for money.
More Space!
May it be a little more with respect to the visualization? On the two display sizes 15" and 19" even larger objects can be visualized easily.
Design and Function!
By the use of the new flush the EisTouchs are easily mountable. The new frames are available in anodized aluminum or in acrylic.
Diversity!
Whether as a pure touch-screen or as a complete TouchPC – the second generation of the EisTouchs is for everybody the right package – including the visualization surface EisBaer SCADA.
Multimedia included!
What is new is the equipment with microphone and active stereo speakers. Therefore, intercommunication and playback of audio and video is possible.
EisBaer - EisTouch HI 3G – 38,1 cm/15“
- 1x 38,1 cm/15" Touch screen TFT with resistive Touch, USB
- 1x EisBaer HI-Server 3.0
- 1x stainless steel flush
- 1x frame (anodized aluminum, chosable in black or silver OR acrylic, chosable in black or white)
- 1x front-USB, Active-Stereo-Speaker, microphone and display-function buttons
Technical Data - 38,1 cm/15" Touchscreen TFT-Display:
- 38,1 cm/15" Touch screen, resistive, USB, DVI and VGA; frame: Inlay
- Mounting depth: 80mm, Dimensions: 377 x 308 x 80 mm
- Cutting: 380 x 293 x 80 mm; Frame: 397,4 x 321,3 mm
- Resolution: 1024 x 768 Pixel
Technische Daten - HI-Server 3.0:
- Breite x Länge x Höhe: 127mm x 127mm x 48mm
- Prozessor: Intel® Core i3-4020Y (2 x 1.5 GHz), 3MB Cache
- Intel® HD Graphics 4200, HDMI 1.4a/Displayport
- 4096 MB RAM
- Solid State Drive (SSD) 60 GB
- Ethernet 10/100/1000 MBit/s
- Audio: Sound (Vollduplex), MicIn
- 2x USB 2.0, 4x USB 3.0
- WiFi b/g/n/a/ac, Bluetooth 4.0
- 1x eSATA, 1x IR, 1x Card Reader SD/SDHC/SDXC
- 1x Spannungseingang: 12 – 19V
- 8 – 15 Watt Leistungsaufnahme
- Fanless
Optional:
- Mounting kit for cavity wall mounting
