Order number: AM-EIS-304-87-SI
plus Delivery costs (17 kg)
16" EisTouch HI 4G - Wide-Screen-Format
Frame Silber
EisBaer – built-in-Touchscreens with Wide-Screen-Format
The easy to use visualization in a sophisticated design

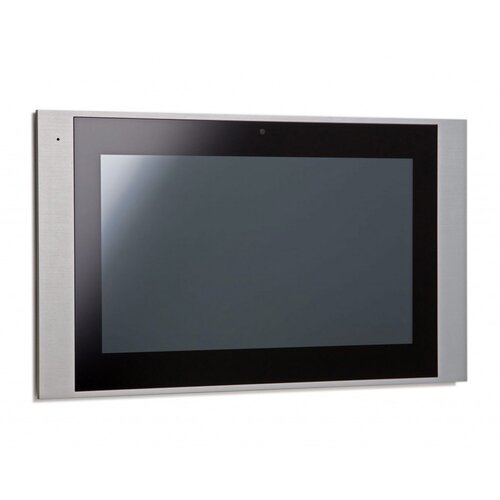

16" EisTouch HI 4G - Wide-Screen-Format
Frame Silber
EisBaer – built-in-Touchscreens with Wide-Screen-Format - the easy to use visualization in a sophisticated design
The EisBaer EisTouch 4G – series is characterized as a complete solution with a extremely elegant and timeless design with a real WideScreen Multi-Touch display.
More Space!
May it be a little more with respect to the visualization? On the four display sizes 10“ to 24“ even larger objects can be visualized easily.
Design and Function!
By the use of the new flush the EisTouchs are easily mountable. The new design combination made of glas and aluminum is an optical highlight for your building visualisation.
Diversity!
The 4th EisTouch generation (4G) in wide-screen formate is for everybody the right package – including the visualisation surface EisBaer SCADA.
Multimedia included!
What is new ist he equipment with microphone, active stereo speakers, USB and Reset button – hidden under the frame – for an even better look. Therefore, inter-communication and playback of audio and video is possible.
16" EisBaer - EisTouch HI 4G
- 1x 39,6 cm/15,6" Touch screen TFT with capacitive Touch, USB
- 1x incl. integrated EisBaer HI-Server 3.0
- 1x stainless steel flush
- Frame: Aluminum anodized – Silver, solid glass-touch with black background
- 1x Front-USB, active Stereo speakers and microphone
- DIN-rail power supply for external mounting
Technical Data – 39,6 cm/15,6" Touchscreen TFT-Display:
- 39,6 cm/15,6" Touch screen, capacitive, USB; DVI and VGA
- Resolution: 1366 x 768 Pixel (WSVGA)
- Mounting depth: 80 mm, Dimensions (outside): 462 x 272 x 10 mm
- Flush dimensions: 452 x 250 x 80 mm; Front: 462 x 272 mm
- Wall Cutting: 455 x 253 mm
Technische Daten - HI-Server 1.8:
- Breite x Länge x Höhe: 127mm x 127mm x 48mm
- Prozessor: Intel® Core i3-4020Y (2 x 1.5 GHz), 3MB Cache
- Intel® HD Graphics 4200, HDMI 1.4a/Displayport
- 4096 MB RAM
- Solid State Drive (SSD) 60 GB
- Ethernet 10/100/1000 MBit/s
- Audio: Sound (Vollduplex), MicIn
- 2x USB 2.0, 4x USB 3.0
- WiFi b/g/n/a/ac, Bluetooth 4.0
- 1x eSATA, 1x IR, 1x Card Reader SD/SDHC/SDXC
- 1x Spannungseingang: 12 – 19V
- 8 – 15 Watt Leistungsaufnahme
- Lüfterlos, ohne drehenden Teile und damit geräuschlos
Optional:
- Mounting kit for cavity wall mounting
Technische Daten – 39,6 cm/15,6" Touchscreen TFT-Monitor:
- 39,6 cm/15,6" Touchscreen, kapazitiv, USB; DVI und VGA
- Auflösung: 1366 x 768 Pixel (WSVGA)
- Blende: Aluminium-eloxiert – Silber; fester Glas-Toucheinsatz, schwarzer Hintergrund
- Einbautiefe: 80 mm, Abmaße (Außen): 462 x 272 x 10 mm
- Gehäusemaße: 452 x 250 x 80 mm; Front: 462 x 272 mm
- Wandausschnitt: 455 x 253 mm
Technische Daten - HI-Server 3.0:
Industrie-geeignet und Staubgeschützt
Lüfterloses Design
Vollaluminium Profilgehäuse
Langzeitverfügbarkeit
CPU: Intel® Core i3 5010U 2x2,1GHz, passiv gekühlt
Grafikkarte: Intel® HD Grafik
Arbeitsspeicher: 4GB RAM
Festplatte: 64 GB SSD
Betriebssystem: Windows 7 Professional 64Bit
Spannungssversorgung: Weitbereichseingang 9…19V DC
Anschlüsse – vorne:
1x USB 3.0
1x RS232
1x Audio-Out/Mic-In (Kombianschluß)
Ein-/Ausschalter
Anschlüsse – hinten:
2x HDMI (unabhängige Displays), maximale Auflösung 3840 x 2160Px
Dual-Ethernet: 2x 10/100/1000MBit
2x USB 3.0 & 1x USB 2.0
1x Spannungsversorgungsanschluß (Netzteil im Lieferumfang)
Leistungsaufnahme: Leerlauf 6W / 100% Last 11W
Temperaturbereich: 0°C ~50°C
Luftfeuchtigkeit: 0 ~ 80%, nicht kondensierend
Gehäuse-Maße: 134 mm x 111 mm x 52 mm, IP60
Zertifizierungen: CE, RoHS, ErP Lo7, Energy Star
Optional:
- Montagesatz für Hohlwandmontage
