Order number: AM-EIS-304-97-SW
plus Delivery costs (17 kg)

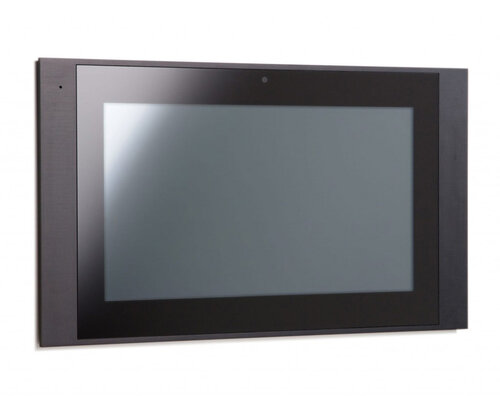

22" EisTouch HI 4G - Wide-Screen-Format
Frame Black
EisBaer – built-in-Touchscreens with Wide-Screen-Format
The easy to use visualization in a sophisticated design
22" EisTouch HI 4G - Wide-Screen-Format
Frame Silver
EisBaer – built-in-Touchscreens with Wide-Screen-Format - the easy to use visualization in a sophisticated design
The EisBaer EisTouch 4G – series is characterized as a complete solution with a extremely elegant and timeless design with a real WideScreen Multi-Touch display.
More Space!
May it be a little more with respect to the visualization? On the four display sizes 10“ and 24“ even larger objects can be visualized easily.
Design and Function!
By the use of the new flush the EisTouchs are easily mountable. The new design combination made of glas and aluminum is an optical highlight for your building visualisation.
Diversity!
The 4th EisTouch generation (4G) in wide-screen formate is for everybody the right package – including the visualisation surface EisBaer SCADA.
Multimedia included!
What is new ist he equipment with microphone, active stereo speakers, USB and Reset button – hidden under the frame – for an even better look. Therefore, inter-communication and playback of audio and video is possible.
22" EisBaer - EisTouch HI 4G
- 1x 22" Touch screen TFT with capacitive Touch, USB
- 1x incl. EisBaer HI-Server 3.0
- 1x stainless steel flush
- Frame: Aluminum anodized – Black, solid glass-touch with black background
- 1x Front-USB, active Stereo speakers and microphone
- Integrated power supply in the flush
Technical Data – 22" Touchscreen TFT-Display:
- 54,9 cm/21,6" Touch screen, kapacitive, USB; DVI and VGA
- Resolution: 1920 x 1080 Pixel (Full HD)
- Mounting depth: 80 mm, Dimensions (outside): 595 x 340 x 10 mm
- Flush dimensions: 587 x 327 x 80 mm; Front: 595 x 340 mm
- Wall Cutting: 589 x 329 mm
Technische Daten - HI-Server 3.0:
- Breite x Länge x Höhe: 127mm x 127mm x 48mm
- Prozessor: Intel® Core i3-4020Y (2 x 1.5 GHz), 3MB Cache
- Intel® HD Graphics 4200, HDMI 1.4a/Displayport
- 4096 MB RAM
- Solid State Drive (SSD) 60 GB
- Ethernet 10/100/1000 MBit/s
- Audio: Sound (Vollduplex), MicIn
- 2x USB 2.0, 4x USB 3.0
- WiFi b/g/n/a/ac, Bluetooth 4.0
- 1x eSATA, 1x IR, 1x Card Reader SD/SDHC/SDXC
- 1x Spannungseingang: 12 – 19V
- 8 – 15 Watt Leistungsaufnahme
- Lüfterlos, ohne drehenden Teile und damit geräuschlos
Optional:
- Mounting kit for cavity wall mounting
