Order number: AM-EIS-504-03
plus Delivery costs (25 kg)

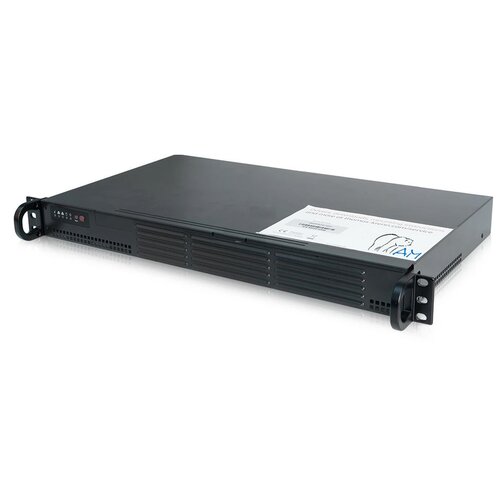

EisBaer – EISSERVER III - 19“ Server
1HE Rack server with Intel® single CPU and 250mm installation depth
EisBaer – EISSERVER III - 19“ Server
1HE Rack server with Intel® single CPU and 250mm installation depth
• Intel® Xeon D-1518 (4 Cores, 2.2GHz, 6MB))
• 8 GB (2x4GB) ECC DDR4 2666 RAM
• 2x 240 GB SATA III SSD 2.5” (RAID 1)
• 6x 1Gbit LAN, 2x 10Gbit (SFP+) onBoard
• Expandable with 1 FP/ HL additional card(s), 1x PCI-E 3.0 x8
• Integrated IPMI (dedicated NIC)
• 4 DIMMs
• 1x VGA
• USB (no PS2 ports)
• 2x SATA DOM power connector
• 1x COM Port (header)
• 2x USB Rear (USB 3.0) 1x USB on Board, Type A (USB 2.0)
• RAID-Controller on Board (RAID 0, 1, 5, 10)
• Energy-efficient power supply
• OnBoard-Ports: 4x SATA-3 (6 Gbit/s) Intel SoC RAID 0, 1, 10, 5
• OnBoard-Ports: 1x mSATA
• OnBoard-Ports: 1x M.2 PCI-E 3.0 x4, SATA
• M.2 form factor: 2242, 2280, 22110
• Microsoft® Windows Server Essentials
• Visualization: EisBaer-Suite preinstalled (without project license and without dongle)
Dimensions:
• (H x B X T) 430mm x 437mm x 250mm
• 19 inch rack mount 1HE
• ServicePack, 3 year on site for EisServer III
• Mouse & Keyboard Set, USB
