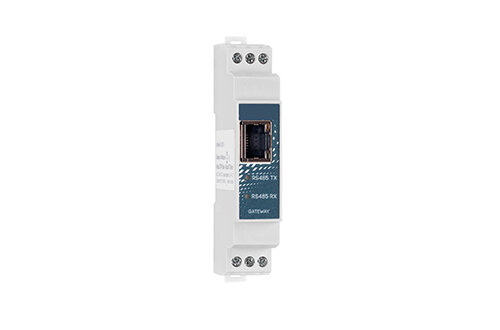

Modbus-TCP/IP – Modbus®-RTU (RS485) - LAN-Schnittstelle, Rail mount
MODBUS-GATEWAY WITH WEBSERVER
Modbus®-TCP/IP - Modbus®-RTU Slave/Master or Master/Slave - Modbus-TCP/IP - Modbus®-RTU (RS485) - LAN interface, Rail mount
Des Gateway with web server Modbus®-TCP/IP - Modbus®-RTU Slave/Master or Master /Slave is a device that converts the protocol Modbus®-RTU to TCP/IP or TCP/IP to Modbus®-RTU. Existing serial "slave" devices can thus be easily integrated into a Modbus®-TCP/IP or Modbus RTU network.
Technical data
The gateway with web server Modbus®-TCP/IP - Modbus®-RTU slave/master or master/slave is a device that converts the Modbus®-RTU protocol to TCP/IP or TCP/IP to Modbus®-RTU. Existing serial "slave" devices can therefore be easily integrated into a Modbus®-TCP/IP or Modbus RTU network.
Supply voltage: 9-26V DC
Max. current consumption: 0.45 W measured (typically 0.5W) = approx. 21mA
Ethernet interface
Number of connections: 1
Speed: 10/100 Mbps, Auto MDI/MDIX, autonegotiation
Plug connection: 8-pin RJ45
Insulation protection: 1.5 KV
Serial interface
Number of connections: 1
Standard serial: RS485
Connection: Screw terminal block
ESD protection: 15 KV for all signals
Serial communication parameters
Datat bits: 7.8
Stop bits: 1, 1.5, 2
Parity: None, Even, Odd
Baud rate: 300 bps to 230.4 Kbps
Serial signals: RS485: Data+ , Data- , GND
Operating temperature: 0...+55 °C
Storage temperature: -20...+70°C
Housing: plastic
LED display: 2x LED with TX and RX
Dimensions WxHxD: 17.5 x 90 x 55mm
Mounting: TS35 top-hat rail
EMC according to EN61326
- Power supply unit for LAN interface, REG (optional)
