Order number: AM-EIS-360-33
plus Delivery costs (6.5 kg)

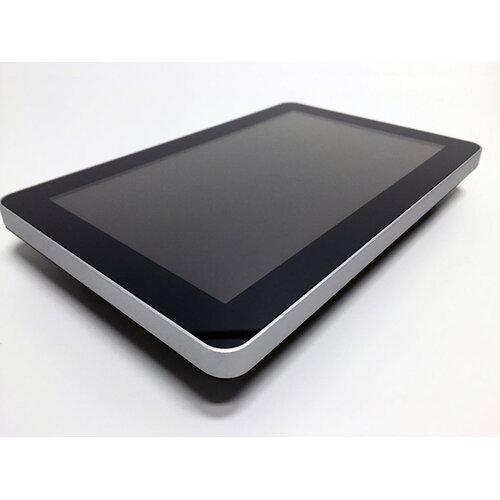

EisBaer EisTouch HI 6G – 10“ Touchpanel with PoE
PoE, without FM-wallbox, without power supply
10" EisTouch 6G - Standard, PoE, without FM-wallbox, without power supply
Specification:
• Fanless Design, compact and maintenance free
• Intel® Celeron N6211 (up to 3.0GHz)
• Intel® HD Graphics
• 4GB RAM
• 128 GB (M.2 SSD)
• OS: Windows 11 IoT Enterprise
• 10,1“ Touchdisplay 1280 x 800 Pixel, capacitiv
• Power supply: PoE IEEE 802.3at from 25Watt PoE support condition: Use without other power consuming devices
• 2x USB 3.2
• 2x 2.5GigaLAN RJ45 (1x Ethernet, 1x PoE-Ethernet)
• 1x RS 232/422/485 (Default: RS485)
• 1x internal speaker 1W
• 1x Power supply via 12 VDC external
• Operational temperature: 0°C ~ 50°C
• Humidity: 0 ~ 90%, not condensing
• Front: IP65
• Size-Display (W x H x D): 264,5 x 173,29 x 35,7*mm - includes display frame: 13mm
• Optional: EisTouch 6G - FM-wallbox (254 x 163 x 54 mm)
• Optional: EisTouch 6G - Mounting kit for hollow wall mounting
• Optional: EisTouch 6G – KNX-Interface
• Optional: EisTouch 6G - Cavity wall mounting kit
• Optional: EisBaer HI-Server 4.0 NT (Power supply)
• Optional: EisBaer Hardware license with 10 pages / 200 components/channel
• Optional: EisBaer Hardware license with 20 pages / 400 components/channel
Please note: The touch panel 6G does not have a microphone and therefore it can not be used as a door intercom indoor station.
